Complete your estimate in three easy steps.
Select how you want to build this estimate. You can switch methods at any time.
Trex® FenceDesigner™
planning, layout quantities, and professional project summaries.
Drawing instructions How to draw, place gates, and use the controls
Quick start

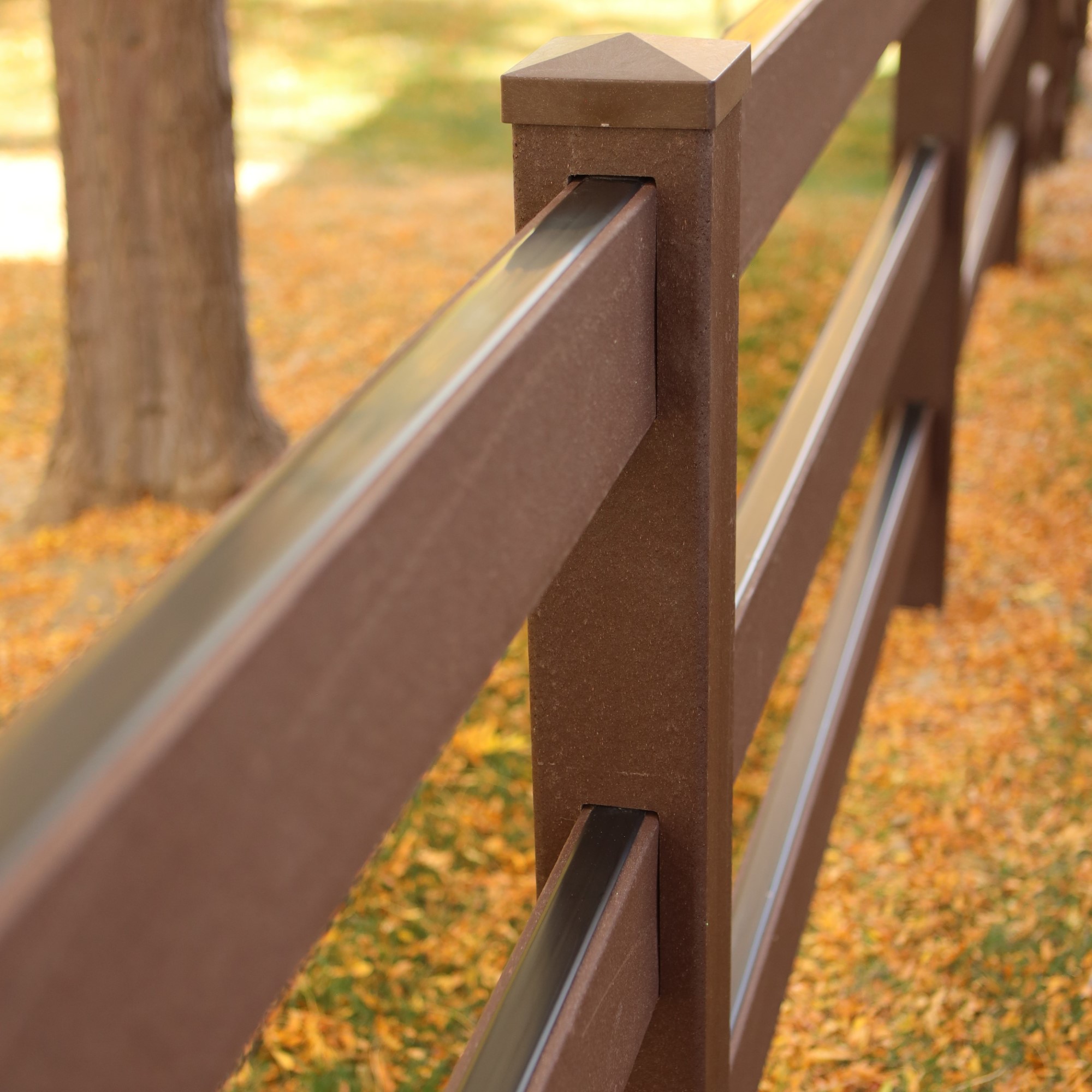

- Post center reference (on-center): Seclusions 96", Horizons 97", Solitudes 96", Shenandoah 92.25".
- Draw the main fence outline first.
- Then add gates, fixed posts, buildings, or notes.
- Click or tap near an existing post to continue from that point.
- Drag an end post to stretch or rotate its fence run. Click the post without dragging to start a branch.
- Gates and fixed posts snap to the closest fence line. Drag a gate onto another run to move it there.
- Gates must be placed inside an existing fence run, so add the fence line on both sides first before placing a gate.
- Use the joystick by clicking, holding, and dragging it to pan the canvas or satellite view.
Tip: fixed posts are drawing anchors for branching a new run from inside an existing section (they are not a separate product).
Inputs explained
- Fence System: changes spacing and material calculations for the selected system.
- Angle: keeps runs on 45° and 90° or allows free angles.
- Labels: shows or hides measurement labels on the drawing.
- Undo: removes your last action.
- Finish: ends the current fence run.
- + 🏠 adds a building for perspective or reference only.
- + Fixed post adds a fixed post snapped to a fence line.
- Post spacing reference: Seclusions 96" OC (offset 0"), Horizons 97" OC (offset +1"), Solitudes 96" OC (offset 0"), Shenandoah 92.25" OC (offset −3.75").
- Gate size + + Gate chooses the opening size, then click a fence line to place it. Build the fence line on both sides first so the gate sits inside the run.
- + Note adds a note box for reference.
- 🧹 Clear all clears the entire drawing and controls.
- ⬇️ PDF downloads the drawing summary.
- − 🔍 + changes the current canvas or satellite zoom level.
- Joystick click, hold, and drag it in the direction you want to move.
Selected Object
Summary
• On the canvas, every joint is treated as a post and additional posts are added so no span exceeds the max OC.
• Gate openings reduce the number of fence sections but reuse existing posts.
Add Gates
Submitting your request…
One moment while we confirm your submission.
TAXES NOT INCLUDEDAll prices and estimates exclude applicable taxes. Taxes will be added to your final invoice.
Itemized materials
State-matched Trex pricing for the selected style.
| Item | Qty |
|---|---|
| Choose a state to load pricing… | |
HOW MUCH SHOULD I CHARGE TO INSTALL TREX FENCING?
ANSWER QUESTIONS BELOW:
(if posts are set one day and built another, divide this by 2)
(typically 1-10%)
(get this from your local supplier or call us)
